Packet Tracer Note

Network Fundamentals and Operation

Basic Network Devices

An end system is a device located at the edge of a network, such as a PC or a server. It is the device that actually sends and receives data.

A switch connects end systems inside the same local area network (LAN). It checks the MAC address in an incoming frame and decides which port should receive the frame.

A router connects different networks. It uses the destination IP address to choose the best path and forwards packets according to its routing table.

How a Switch Works

The key address used by a switch is the MAC address. When a switch receives data, it learns the source MAC address and checks the destination MAC address to decide where to forward the frame.

1. Learning
   • The switch records the source MAC address of the received data in its MAC address table.
   • For example, if a PC sends data through port Fa0/1, the switch remembers that the PC’s MAC address is reachable through Fa0/1.
2. Forwarding
   • The switch checks the destination MAC address in the MAC address table.
   • If the destination MAC address is already in the table, the switch forwards the frame only through the correct port.
   • This improves network efficiency because the switch does not send the frame to unnecessary ports.
3. Flooding
   • If the destination MAC address is not in the MAC address table, the switch forwards the frame out all ports except the port that received it.
   • This happens when the switch has not yet learned the destination device.

In short, a switch forwards data inside a LAN based on its MAC address table. At first, flooding may happen because the switch does not know every address yet. As communication continues, the MAC address table fills up and forwarding becomes more precise.

How a Router Works

The key address used by a router is the IP address. A switch forwards frames inside a LAN using MAC addresses, while a router forwards packets between different networks using IP addresses.

1. Routing
   • Routes are added to the routing table through static routing or dynamic routing.
   • Static routing is configured manually by an administrator.
   • Dynamic routing allows routers to exchange routing information and learn paths automatically.
2. Packet Switching
   • The router checks the destination IP address of the received packet.
   • It forwards the packet according to the path listed in the routing table.

How Hosts Receive IP Addresses

A host needs an IP address before it can communicate on a network. There are two common ways to assign an IP address.

Static configuration means the user or administrator manually enters the IP address, subnet mask, and default gateway. This is often used for servers or network devices that should keep the same address.

Dynamic configuration means the host receives an IP address automatically from a DHCP server. This is useful for regular PCs and laptops because it makes address management easier.

Encapsulation and De-Encapsulation

Encapsulation is the process of adding headers to data so it can travel across the network. As data moves down the network layers, headers such as TCP/UDP, IP, and Ethernet headers are added.

De-encapsulation is the reverse process. The receiving device removes headers step by step until it reaches the original data.

Packet Tracer is helpful because I can visually see that devices do not simply send raw data. Each layer adds or removes information as the packet moves through the network.

Practice Screenshot

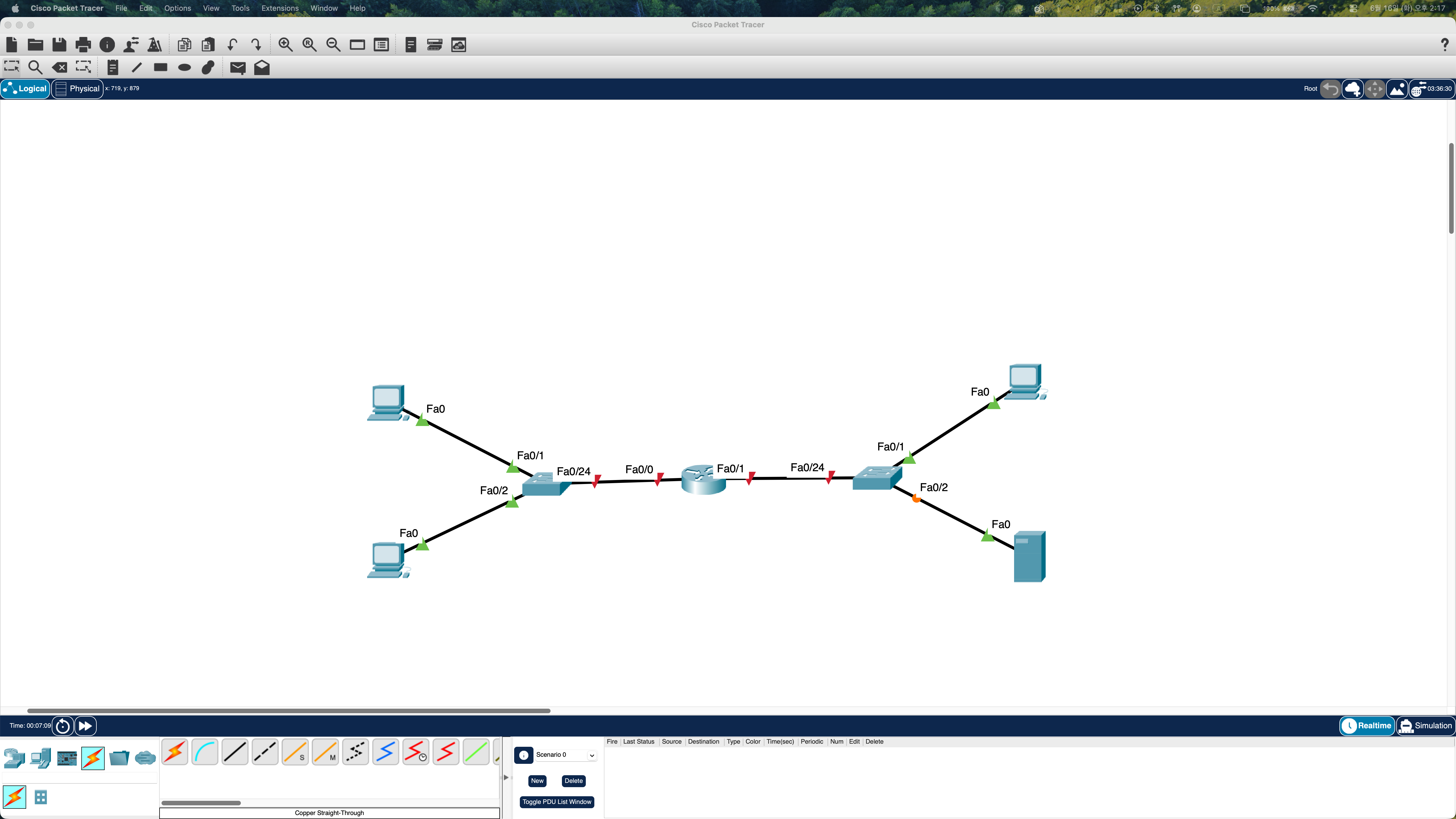

My first network topology created in Packet Tracer

Router Interface Configuration Flow

For the router to connect both networks, each router interface needs an IP address and must be enabled.

Router> enable
Router# configure terminal

Router(config)# interface fastEthernet 0/0
Router(config-if)# ip address 192.168.10.1 255.255.255.0
Router(config-if)# no shutdown

Router(config-if)# exit
Router(config)# interface fastEthernet 0/1
Router(config-if)# ip address 192.168.20.1 255.255.255.0
Router(config-if)# no shutdown

The no shutdown command turns on the interface. In Packet Tracer, if the triangle near the router port is red, the interface may be shut down or the link may not be fully active yet. After setting the IP address, entering no shutdown activates the port.

Important Host Settings

Each PC or server needs the correct IP address, subnet mask, and default gateway.

Inside the same LAN, the switch forwards traffic based on MAC addresses. However, when a host needs to reach a different LAN, it sends the packet to its default gateway. If the default gateway is wrong, communication with other networks will fail.

For example, if the PC 192.168.10.100 wants to reach 192.168.20.100, the traffic follows this path:

192.168.10.100
-> 192.168.10.1 gateway
-> router
-> 192.168.20.0/24 network
-> 192.168.20.100

Verification Commands

After finishing the configuration, I can verify the router status with these commands:

Router# show ip interface brief
Router# show running-config
Router# show ip route

• show ip interface brief: checks each interface IP address and up/down status
• show running-config: checks the current active configuration
• show ip route: checks the networks known by the router

Finally, I can use ping from a PC to verify communication between different networks.

ping 192.168.20.100

Simulation Screenshot

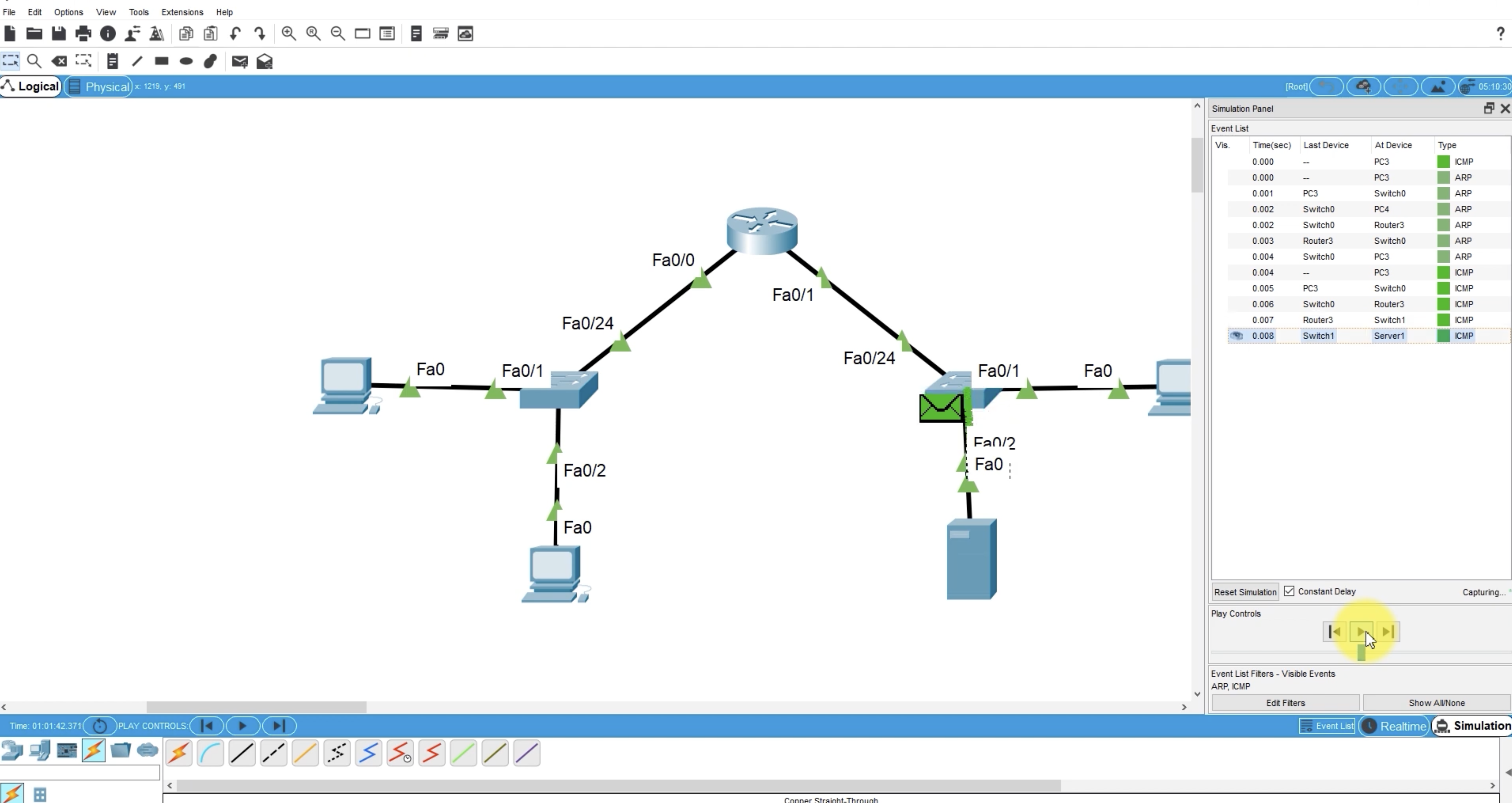

Packet Tracer simulation mode showing ARP and ICMP traffic

VLAN

Today I reviewed VLAN fundamentals. A VLAN, or Virtual LAN, is a way to divide one physical switched network into multiple logical networks. Even if devices are connected to the same physical switches, VLANs can separate them as if they were on different networks.

The key idea is:

One VLAN = one broadcast domain = one logical network

Traffic that belongs to a specific VLAN is forwarded only through ports that belong to that VLAN. For example, VLAN 10 traffic stays inside VLAN 10, and VLAN 20 traffic stays inside VLAN 20 unless routing is configured between them.

How VLANs Work

A switch still performs the same basic switching functions: learning, forwarding, and flooding. The difference is that it also checks the VLAN number.

When a switch learns a MAC address, it does not only record the MAC address and port. It also records the VLAN ID.

Example MAC address table:

Vlan   Mac Address   Type      Ports
10     AAA           DYNAMIC   Fa0/2
20     BBB           DYNAMIC   Fa0/1
20     CCC           DYNAMIC   Fa0/3
10     DDD           DYNAMIC   Fa0/4

This means that the same switch can keep separate forwarding information for different VLANs. A frame in VLAN 10 is forwarded only within VLAN 10. A frame in VLAN 20 is forwarded only within VLAN 20.

VLAN Range

VLAN ranges are important because some VLAN IDs are reserved.

• VLAN 1 is the default VLAN and cannot be deleted.
• VLANs 2 through 1001 can be added, changed, or deleted.
• VLANs 1002 through 1005 are reserved for Token Ring and FDDI.

Advantages of VLANs

VLANs reduce unnecessary network traffic because broadcast frames are limited to a smaller broadcast domain. Examples of broadcast traffic include ARP requests and NetBIOS name queries.

VLANs also reduce security risk. If a worm, virus, or noisy broadcast spreads in one VLAN, the damage is more contained because the broadcast does not automatically reach every device in the physical network.

Main benefits:

• Reduced broadcast traffic
• Smaller broadcast domains
• Better logical separation
• Easier network management
• Reduced chance that a broadcast problem affects the entire switched network

Access Ports

An access port carries traffic for a single VLAN. It is usually used for interfaces connected to end devices such as PCs, printers, and servers.

Trunk Ports

A trunk port carries traffic for multiple VLANs over one physical link. Trunk ports are commonly used between switches or between a switch and a router.

Without trunking, separate physical links would be needed for each VLAN. With trunking, VLAN 10 and VLAN 20 traffic can both travel across the same link while still remaining logically separate.

Basic trunk configuration:

Switch# configure terminal
Switch(config)# interface fastEthernet 0/3
Switch(config-if)# switchport mode trunk

The switch must be able to identify which VLAN each frame belongs to as it crosses the trunk link. That is the role of a trunking protocol.

Trunking Protocols

Two trunking protocols were covered:

IEEE 802.1Q

802.1Q is the standard trunking protocol. It identifies VLAN traffic by inserting a tag field into the Layer 2 frame header. This tag tells the receiving switch which VLAN the frame belongs to.

ISL

ISL is Cisco proprietary. It identifies VLAN traffic by adding an ISL header and ISL FCS around the original frame. It is older and less commonly used than 802.1Q.

Subnetting

Reference lecture: Network Construction and Operation Week 7_2: Subneting

Today I studied subnetting. Subnetting is the process of dividing one large IP network into smaller logical networks. The goal is to use IP addresses more efficiently and to create network sizes that match the number of hosts actually needed.

Classful networks are often too large for real design needs:

• Class A networks support a very large host space, roughly 16 million host IDs.
• Class B networks support about 65,536 host IDs.
• Class C networks support 256 addresses in the host portion.

For example, if a network only needs about 50 hosts, using a full /24 block with 256 addresses wastes many addresses. Subnetting lets me split that /24 block into smaller pieces.

flowchart LR
    A["One large /24 network<br/>192.168.10.0 - 192.168.10.255<br/>256 total addresses"]
    B["Smaller subnet<br/>/25 = 128 addresses"]
    C["Smaller subnet<br/>/26 = 64 addresses"]
    D["Smaller subnet<br/>/27 = 32 addresses"]
    A --> B
    A --> C
    A --> D

Subnetting Concept

Given this network:

192.168.10.0/24

The /24 prefix means the first 24 bits are the network portion and the last 8 bits are the host portion.

Network portion: 192.168.10
Host portion:    last octet
Address count:   2^8 = 256

Subnetting borrows bits from the host portion and uses them as subnet bits. This creates more networks, but each network has fewer host addresses.

/24 -> 8 host bits  -> 256 addresses
/25 -> 7 host bits  -> 128 addresses per subnet
/26 -> 6 host bits  -> 64 addresses per subnet
/27 -> 5 host bits  -> 32 addresses per subnet

The practical rule is:

More subnet bits = more subnets
Fewer host bits  = fewer hosts per subnet

I can picture the last octet as the part being divided. The more subnet bits I borrow from the host portion, the smaller each subnet becomes.

flowchart TB
    A["/24<br/>Host bits: 8<br/>Block size: 256"]
    B["/25<br/>Borrow 1 bit<br/>2 blocks x 128"]
    C["/26<br/>Borrow 2 bits<br/>4 blocks x 64"]
    D["/27<br/>Borrow 3 bits<br/>8 blocks x 32"]
    A --> B --> C --> D

/25 Example

If I borrow 1 host bit from 192.168.10.0/24, the prefix becomes /25.

Subnet mask: 255.255.255.128
Block size:  128

This creates two subnets:

Subnet	Network Address	Usable Host Range	Broadcast Address
192.168.10.0/25	192.168.10.0	192.168.10.1 - 192.168.10.126	192.168.10.127
192.168.10.128/25	192.168.10.128	192.168.10.129 - 192.168.10.254	192.168.10.255

flowchart LR
    A["192.168.10.0/24<br/>256 total addresses"]
    B["192.168.10.0/25<br/>0 - 127"]
    C["192.168.10.128/25<br/>128 - 255"]
    A --> B
    A --> C

In each subnet, the first address is the network address and the last address is the broadcast address.

192.168.10.0/25
Network address:   192.168.10.0
Usable hosts:      192.168.10.1 - 192.168.10.126
Broadcast address: 192.168.10.127

/26 Example

If I borrow 2 host bits, the prefix becomes /26.

Subnet mask: 255.255.255.192
Block size:  64

This creates four subnets:

Subnet	Network Address	Usable Host Range	Broadcast Address
192.168.10.0/26	192.168.10.0	192.168.10.1 - 192.168.10.62	192.168.10.63
192.168.10.64/26	192.168.10.64	192.168.10.65 - 192.168.10.126	192.168.10.127
192.168.10.128/26	192.168.10.128	192.168.10.129 - 192.168.10.190	192.168.10.191
192.168.10.192/26	192.168.10.192	192.168.10.193 - 192.168.10.254	192.168.10.255

flowchart LR
    A["192.168.10.0/24"]
    B["/26<br/>0 - 63"]
    C["/26<br/>64 - 127"]
    D["/26<br/>128 - 191"]
    E["/26<br/>192 - 255"]
    A --> B
    A --> C
    A --> D
    A --> E

Each /26 subnet has 64 total addresses. In normal host assignment, 62 are usable because one address is reserved for the network address and one for the broadcast address.

/27 Example

If I borrow 3 host bits, the prefix becomes /27.

Subnet mask: 255.255.255.224
Block size:  32

The first /27 subnet looks like this:

192.168.10.0/27
Network address:   192.168.10.0
Usable hosts:      192.168.10.1 - 192.168.10.30
Broadcast address: 192.168.10.31

The next subnet starts at 192.168.10.32, then 192.168.10.64, then 192.168.10.96, and so on.

flowchart LR
    A["/27 block 1<br/>0 - 31"]
    B["/27 block 2<br/>32 - 63"]
    C["/27 block 3<br/>64 - 95"]
    D["/27 block 4<br/>96 - 127"]
    E["..."]
    A --> B --> C --> D --> E

Subnetting Design Example

The lecture example divides 192.168.10.0/24 for different floor requirements:

1st floor: 100 hosts
2nd floor: 50 hosts
3rd floor: 30 hosts

I should choose the subnet size based on the required number of hosts.

For 100 hosts:

2^7 = 128 addresses
Host ID bits = 7
Prefix = /25
Subnet mask = 255.255.255.128

For 50 hosts:

2^6 = 64 addresses
Host ID bits = 6
Prefix = /26
Subnet mask = 255.255.255.192

For 30 hosts:

2^5 = 32 addresses
Host ID bits = 5
Prefix = /27
Subnet mask = 255.255.255.224

A clean allocation can be:

Area	Host Need	Chosen Prefix	Address Range	Usable Host Range
1st floor	100	/25	192.168.10.0 - 192.168.10.127	192.168.10.1 - 192.168.10.126
2nd floor	50	/26	192.168.10.128 - 192.168.10.191	192.168.10.129 - 192.168.10.190
3rd floor	30	/27	192.168.10.192 - 192.168.10.223	192.168.10.193 - 192.168.10.222
Remaining space	-	/27	192.168.10.224 - 192.168.10.255	192.168.10.225 - 192.168.10.254

flowchart LR
    A["192.168.10.0/24<br/>256 total addresses"]
    B["1st floor<br/>100 hosts needed<br/>192.168.10.0/25<br/>0 - 127"]
    C["2nd floor<br/>50 hosts needed<br/>192.168.10.128/26<br/>128 - 191"]
    D["3rd floor<br/>30 hosts needed<br/>192.168.10.192/27<br/>192 - 223"]
    E["Remaining<br/>192.168.10.224/27<br/>224 - 255"]
    A --> B
    A --> C
    A --> D
    A --> E

This is the same logic as VLSM: allocate the largest subnet first, then continue with smaller subnets.

How to Think About Subnetting

The most useful process for subnetting is:

1. Start with the original network.
2. Decide how many hosts each subnet needs.
3. Find the smallest power of 2 that can cover that host requirement.
4. Convert the host bits into a prefix length.
5. Use the block size to list each network range.
6. Identify the network address, usable host range, and broadcast address.

Quick reference:

/25 -> 128-address blocks -> mask 255.255.255.128
/26 -> 64-address blocks  -> mask 255.255.255.192
/27 -> 32-address blocks  -> mask 255.255.255.224

The key takeaway is that subnetting is not just binary math. It is a network design tool that lets me match address space to real requirements.
